Beginner Setup Steps for A Wood CNC Router Machine

Ever wondered why your cnc router machine setup affects results so much? A proper start ensures precision, safety, and smoother performance. A wood cnc router machine can carve signs, furniture, or detailed patterns with ease. In this article, you'll learn the essential beginner setup steps to unlock accuracy and confidence.

Choosing the Right Location and Workspace

Setting up a cnc router machine starts long before the first cut. The workspace you choose directly shapes safety, accuracy, and efficiency. Many beginners overlook this step, but poor planning often causes vibration, dust buildup, or even electrical risks. Let’s break down how to create the right environment for your wood cnc router machine.

Stable Work Surface

Your router needs a strong, level bench. A shaky table transfers vibration into the cut, which reduces accuracy and wears tools faster. Heavy-duty steel or solid wood benches work best. For larger machines, anchor the frame to the floor. This not only stabilizes the cnc router machine but also extends its lifespan.

Space and Ventilation

Dust is more than just a nuisance. Wood dust impacts air quality and can damage sensitive electronics inside the machine. Place the router in a well-ventilated corner of your shop. Add an exhaust fan or connect a dust collection unit to control fine particles. Ensure there’s enough clearance around the wood cnc router machine for material handling and safe operator movement.

Electrical and Safety Considerations

Every cnc router machine has specific power needs. Smaller models may run on a standard outlet, while industrial routers often require 220V or even three-phase power. Check your electrical supply before installation. Also, make sure the emergency stop button is clearly visible and easy to access. Mount fire extinguishers nearby, and avoid extension cords for high-power machines.

Safety Preparations Before Setup

Running a cnc router machine safely starts before turning on the power. Many accidents in workshops happen because operators skip basic safety checks. For beginners, learning these habits early makes every project safer and more productive. Here's how to prepare before setting up your wood cnc router machine.

Personal Protective Equipment

Always gear up before approaching the router. Safety goggles protect your eyes from chips and dust. Ear muffs or plugs cut the noise, which often exceeds safe levels. A dust mask or respirator shields your lungs from fine wood particles. Gloves may help when handling material, but never wear them near moving parts.

Emergency Controls

Locate the emergency stop button (E-stop) before you start. On most cnc router machines, it’s a large red switch on the frame or controller box. Test it once to understand how quickly it halts the spindle and motors. In emergencies, a clear path to this button saves valuable seconds.

Workspace Cleanliness

A cluttered shop is a hazard. Loose tools, tangled cables, or scattered wood scraps can cause tripping or even fires from sparks. Keep the floor clear and surfaces organized. Dust collection systems not only improve cut quality but also lower fire risks. A clean workspace also helps your wood cnc router machine last longer.

Note: Train staff to perform a two-minute safety check before powering a cnc router machine; it reduces downtime and accidents significantly.

Understanding the CNC Router Machine Components

Before powering up a cnc router machine, it's important to know its main parts. Each component plays a role in stability, precision, and safety. By understanding how they work together, beginners can get consistent results and avoid costly mistakes. Let's look at the six core elements of a wood cnc router machine.

Frame and Gantry

The frame is the foundation. A rigid steel or aluminum body reduces vibration during cutting. The gantry moves across the X and Y axes, guiding the spindle with precision. Beginners should always check alignment before each project. Weak or misaligned frames often cause inaccurate cuts and uneven finishes.

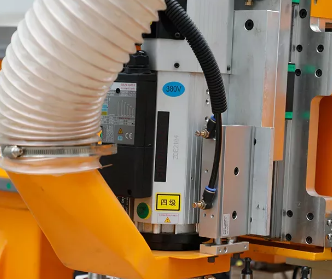

Spindle and Router Bits

The spindle is the cutting engine of the machine. It spins router bits at high speed to carve wood or other materials. Different bits serve different tasks:

● Flat end mills: slotting and contour cuts.

● Ball nose bits: smooth 3D surfaces.

● V-bits: engraving text or fine details.

Choosing the right bit makes a big difference in cut quality.Bed/Table

The bed holds the material in place. A vacuum table is common in professional shops, while clamps work well for smaller projects. If the workpiece shifts, the cut path will fail. Beginners often start with MDF spoil boards to protect the machine and test setups.

Motors and Drive System

The drive system moves the gantry and spindle along three axes. Stepper motors are affordable and common in entry-level routers. Servo motors are faster and more accurate but add cost. Systems may use ball screws or rack-and-pinion drives to convert motor motion into precise movement. For a first wood cnc router machine, steppers are often enough.

Control Panel & Software

The control panel is the brain of the cnc router machine. It receives G-code generated by CAD/CAM software. Programs like Fusion 360, Easel, or VCarve help beginners design projects and convert them into toolpaths. A clear, simple interface reduces mistakes when learning.

Dust Collection System

Cutting wood generates large amounts of dust. A collection system improves air quality, extends tool life, and keeps the machine accurate. Even a small shop vac attachment helps. For bigger setups, use a dedicated dust collector with a HEPA filter.

Step 1: Initial Assembly and Inspection

Before running a cnc router machine, the first task is assembly and inspection. A careful start helps you avoid hidden faults that could harm accuracy or safety later. For a wood cnc router machine, beginners should focus on checking every part, securing the frame, and confirming smooth motion.

Unboxing & Inventory

When unboxing, don’t rush. Lay out every part on a clean table. Check the package against the parts list from the manual. Look for essentials like router bits, clamps, and power cords. If something is missing, contact the supplier before continuing. This step saves time later and ensures your cnc router machine can be set up without delay.

Frame Alignment

The frame is the backbone of your router. Uneven tightening of bolts causes skew, which affects cutting paths. Use a torque wrench if possible to apply even pressure. Place the frame on a flat surface to prevent twists. For larger machines, anchoring the frame to the floor helps absorb vibration. Beginners should measure diagonals of the frame to confirm squareness before moving on.

Lubrication & Moving Parts Check

Smooth motion is key to precision. Apply the recommended lubricant to ball screws, rails, or lead screws. Move the gantry by hand to feel for resistance. If it sticks, recheck alignment and lubrication. Never start a wood cnc router machine with dry rails—this increases wear and lowers accuracy. Wipe off excess grease to prevent dust buildup.

Step 2: Installing and Calibrating Cutting Tools

Once the frame is ready, the next focus is tool installation. Cutting tools define the quality of every project on a cnc router machine. Beginners should learn how to choose, insert, and calibrate them correctly. For a wood cnc router machine, bit selection and precise Z-axis calibration are the keys to clean cuts.

Selecting Router Bits

Different jobs require different bits. Flat end mills are ideal for slotting or cutting out shapes. Ball nose bits create smooth 3D contours, while V-bits excel at engraving and lettering. Beginners often start with flat bits for simple cuts. Over time, experiment with ball and V-bits to expand project options. Using the wrong bit often leads to rough edges or excessive tool wear.

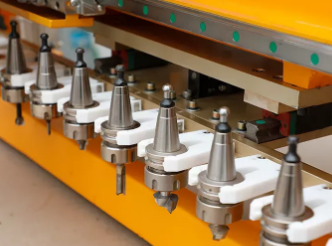

Collet & Spindle Setup

The collet holds the bit inside the spindle. Always power off the machine before inserting tools. Slide the bit into the collet with most of the shank secured. Tighten the nut using the wrenches provided, but avoid over-tightening, which may damage the spindle. After installation, give the bit a gentle pull to confirm it is secure. This step ensures safe operation during high-speed rotations.

Tool Calibration

Proper calibration prevents miscuts. First, set the tool length to match your CAM software settings. For the Z-axis zero, two methods are common:

● Paper Method: Place a sheet between the bit and material, lowering until slight friction is felt.

● Sensor Method: Use a touch plate or sensor pad to auto-detect the tool height.

Reset the Z-axis each time you change a bit. Skipping this step causes inconsistent depth, which ruins designs.

Step 3: Securing the Workpiece on the Bed

A solid setup means accurate cuts. Even the best cnc router machine fails if the workpiece shifts during operation. Beginners must learn how to secure wood panels or smaller parts before cutting. Proper hold-down methods prevent errors, broken bits, and wasted material on a wood cnc router machine.

Vacuum Table Setup

Vacuum tables are ideal for large, flat wood sheets. The suction holds the material firmly against the bed. Before starting, check the seals and zones to ensure even pressure. For smaller pieces, add rubber strips or plugs to improve suction. While a vacuum table is more common in industrial shops, hobbyists can still benefit by using small pump-based systems.

Clamping Options

Not all beginners have access to vacuum tables. Clamps remain the most versatile option. T-slot clamps fit into the machine bed and secure workpieces tightly. Jigs can be custom-made for repetitive shapes, saving setup time. Adhesive options like double-sided tape or spray glue also work for lightweight panels. Always place clamps outside the toolpath to avoid collisions.

Testing Stability

Before cutting, always test the setup. Try to move the material by hand—if it shifts, it's not secure. Run the spindle above the workpiece during a dry test pass to confirm clearance. For long jobs, pause after initial cuts to check if the workpiece remains stable. This habit helps beginners avoid ruined projects and tool damage.

Step 4: Loading and Configuring Design Files

After securing the material, it's time to prepare the digital side. A cnc router machine runs on instructions translated from design files. Beginners must learn how to create or import designs, export G-code, and test toolpaths before making real cuts. With a wood cnc router machine, this step connects creativity to execution.

CAD/CAM Basics

CAD (Computer-Aided Design) software is where you design or import shapes. CAM (Computer-Aided Manufacturing) converts those designs into toolpaths. Popular beginner-friendly options include Easel, VCarve, and Fusion 360. Start simple with letters, signs, or flat patterns. Avoid complex 3D models until you’re comfortable with basic workflows.

G-code Export & Transfer

Once the design is ready, the software generates G-code. This code tells the cnc router machine where to move, how fast, and at what depth. Export it in the format supported by your controller. Transfer methods include:

● USB drive: quick and reliable for small shops.

● Wi-Fi: useful for modern routers with network features.

● Direct connection: from computer to machine via cable.

Choose the method that matches your setup and workflow.Test Run / Air Cut

Before cutting wood, run an air cut. This means letting the spindle move through the toolpath without touching the material. It helps confirm clearance, tool movement, and file accuracy. Watch carefully for unexpected moves. Catching mistakes here saves materials and prevents tool damage.

Step 5: Running Your First Project

This is the exciting part—turning design into a real cut. For beginners, running the first project on a cnc router machine is a big step. Success depends on choosing the right speed, monitoring the job, and finishing properly. A wood cnc router machine can handle both softwoods and hardwoods, but each requires its own approach.

Spindle Speed and Feed Rate

Spindle speed controls how fast the bit spins, while feed rate controls how quickly it moves through the wood. Softwoods like pine cut well at higher speeds with moderate feed rates. Hardwoods like oak or maple need slower spindle speeds and reduced feed to prevent burning. Always match the bit size and type to the material. Beginners should start with recommended settings from their CAM software, then adjust after test cuts.

Monitoring During Cuts

Stay near the router during every job. Listen for unusual sounds, such as squealing or chatter, which may indicate incorrect speed or loose parts. Watch for vibration or dust buildup around the spindle. Never leave a cnc router machine unattended—small problems can quickly damage tools or materials. Keep one hand near the emergency stop button at all times.

Post-Processing

Once the cut is finished, remove the workpiece carefully. Light sanding smooths edges and removes tool marks. For engraved projects, brushing clears out fine dust in grooves. Finishing options include staining, painting, or applying clear coat depending on the project. Cleaning the machine afterward is just as important—dust buildup affects accuracy and motor health over time.

Common Beginner Mistakes to Avoid

Even with preparation, mistakes happen. New users of a cnc router machine often run into issues that waste time and material. Knowing what to avoid helps you get better results from a wood cnc router machine and builds confidence faster.

Improper Clamping

Poor clamping is one of the most common beginner errors. If the workpiece shifts during a cut, the toolpath will be ruined. Loose clamps can also cause bits to snap. Always double-check clamps before starting. For larger boards, use a combination of clamps and a spoil board to keep everything in place.

Wrong Tool or Speed Settings

Another frequent mistake is using the wrong router bit or incorrect spindle speed. Cutting hardwood too quickly burns the surface. Using a dull or oversized bit on softwood may tear fibers instead of slicing cleanly. Feed rates that are too slow can overheat the tool, while too fast can break it. Beginners should always refer to manufacturer charts for tool and speed guidelines.

Skipping Calibration

Calibration ensures the spindle knows exactly where the surface starts. Skipping this step causes cuts to go too deep or too shallow. Inaccurate calibration leads to wasted wood and tool damage. Always reset the Z-axis zero after each tool change. For longer projects, recheck calibration halfway through to maintain precision.

Conclusion

This article reviewed the essential setup steps for beginners using a cnc router machine and highlighted that starting with softwood projects builds confidence. A well-prepared wood cnc router machine improves accuracy, safety, and long-term durability. KiHON offers products with stable construction and reliable performance, delivering greater value to users while supporting them with professional service for lasting success.

FAQ

Q: What is the first step in setting up a cnc router machine?

A: Begin by assembling the frame, checking alignment, and inspecting moving parts to ensure smooth operation.

Q: How do I secure material on a wood cnc router machine?

A: Use vacuum tables for flat panels or clamps and jigs for smaller pieces to prevent shifting during cuts.

Q: Why is calibration important for a cnc router machine?

A: Calibration ensures accurate cutting depth and prevents wasted material or tool damage.

Q: What mistakes should beginners avoid with a wood cnc router machine?

A: Avoid loose clamping, wrong tool speeds, and skipping calibration, as these lead to poor accuracy.

Q: How do I test my cnc router machine before cutting?

A: Run an air cut to check toolpaths and detect errors before starting on wood.
