CNC Panel Saw Basics: How It Works And Why It Matters in Woodworking

The woodworking industry has undergone a significant transformation in recent years. As global demand for furniture, cabinetry, decorative paneling, and wood-based construction materials continues to grow, manufacturers are under increasing pressure to produce with greater speed, consistency, and precision. Traditional cutting methods, while still useful in some contexts, are often too slow, labor-intensive, and prone to error for today’s industrial standards.

To keep up with this demand, woodworkers and factories are turning to advanced machinery that combines precision engineering with smart automation. Among the most impactful of these innovations is the CNC panel saw—a machine that has revolutionized how sheet materials are cut in modern woodworking.

Whether you're a furniture manufacturer, cabinet maker, or custom wood panel fabricator, understanding the basics of CNC panel saws—how they work and why they matter—can help you make better decisions for your production line and overall business growth.

What Is a CNC Panel Saw?

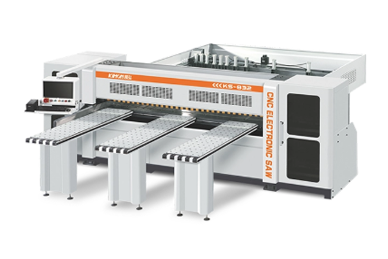

A CNC (Computer Numerical Control) panel saw is a high-performance cutting machine designed to slice large panels of wood-based materials—such as MDF, particle board, plywood, laminated boards, and more—into smaller, dimensionally accurate components. Unlike traditional table saws or sliding panel saws, a CNC panel saw automates the entire process, from positioning and alignment to cutting and unloading.

Basic Structure and Functionality

A CNC panel saw typically includes the following major components:

• Main saw blade for primary cutting

• Scoring saw blade to prevent edge chipping on laminated surfaces

• Heavy-duty working table for stable material support

• Servo motors and ball screw systems for high-precision movement

• CNC control panel with user interface for programming and operation

• Automatic loading and pushing devices to streamline workflow

The integration of software and machinery allows for precise, repeatable cuts with minimal manual intervention.

Comparison with Manual and Sliding Panel Saws

• Manual panel saws require the operator to push materials manually through the blade, often resulting in inconsistent results, especially over long production runs.

• Sliding panel saws offer improved accuracy and ease of use, but still require hands-on operation and skill.

• CNC panel saws, on the other hand, automate cutting operations based on pre-programmed inputs, ensuring faster cycle times, better material yield, and consistently high-quality cuts—perfect for batch or mass production.

Core Components and How It Works

The strength of a CNC panel saw lies in its components and coordinated control system. Let's break down the core elements and their functions.

1. Main and Scoring Saw System

The main saw blade handles the full-depth cut, while a scoring blade (a smaller, faster-spinning blade that runs ahead of the main blade) makes a shallow cut to minimize surface chipping, especially on melamine or laminate-coated boards.

This dual-blade system ensures clean, professional edges without the need for additional sanding or finishing.

2. Servo Motor and Drive Systems

High-torque servo motors are used to drive the saw carriage and material pusher with extreme accuracy. Combined with precision ball screws and linear guide rails, these motors deliver consistent positioning within fractions of a millimeter, even at high speeds.

3. Industrial-Grade Work Table

The cutting table is often made of thick, vibration-resistant materials with optional air flotation systems that reduce friction when sliding heavy boards. This minimizes surface damage and helps in handling oversized materials smoothly.

4. PLC and CNC Controller Integration

At the heart of the machine is a PLC (Programmable Logic Controller) or advanced CNC controller, which receives the user’s input (such as cutting dimensions, sequence, and quantity) and executes them via motor coordination. The control system ensures that every board is cut exactly as programmed, every single time.

Cutting Workflow Step-by-Step

Step 1: Material Loading

Boards are placed on the loading table or automatically loaded via a lift table. Some advanced models even include robotic loaders.

Step 2: Automatic Positioning

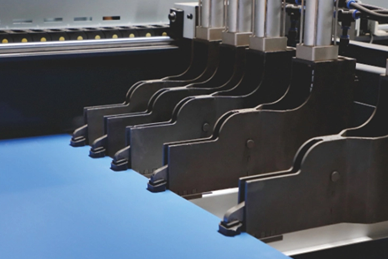

Once the panel is detected, the CNC system measures its dimensions and aligns it precisely using clamping and sensor systems.

Step 3: Optimized Cutting

Based on the input cutting plan, the system calculates the most efficient cutting path (to minimize waste) and starts the process. The scoring saw runs first, followed by the main saw.

Step 4: Automatic Pushing and Sorting

After the cut, the automatic pusher moves the finished panel out of the cutting zone. Some setups include label printing, stacking, or conveyor-based sorting for further downstream processing.

Step 5: Graphic Nesting and Software Optimization

Software such as CAD/CAM or nesting programs can be used to design optimal cutting patterns. This helps reduce offcuts, save materials, and streamline inventory.

Key Advantages for Modern Woodworkers

1. Unmatched Precision

CNC panel saws can cut large panels with tolerances as tight as ±0.1mm. This is essential in applications where parts must fit together perfectly—like modular furniture or joinery components.

2. Lower Error Rates and Waste

Manual errors are virtually eliminated. This reduces waste, saves material costs, and avoids rework, improving overall productivity.

3. Labor Efficiency

A single operator can oversee a CNC panel saw, which replaces the labor of several manual operators. This is especially useful in areas with rising labor costs or a shortage of skilled workers.

4. Safety and Ergonomics

Modern CNC panel saws come with protective covers, emergency stops, and minimized manual handling. This leads to a safer, more ergonomic workplace.

5. High Throughput

With automatic loading, optimized cutting paths, and continuous push-feed operation, CNC panel saws can process hundreds or thousands of panels in a single shift.

Types of Materials It Can Handle

One of the biggest advantages of CNC panel saws is their versatility. They are designed to handle a wide range of sheet materials, including:

• MDF (Medium-Density Fiberboard): Smooth, stable, ideal for furniture parts.

• Particle Board: Lightweight and cost-effective, often laminated.

• Plywood: Strong, layered material used in cabinetry and structural panels.

• Melamine Board: Coated surfaces for decorative finishes.

• Solid Wood Panels or Multilayer Boards: Requires heavy-duty cutting strength.

• PVC and Acrylic Panels: Some CNC panel saws can even cut plastic boards with the right blade configuration.

Thickness Capacity

Most industrial CNC panel saws can cut panels from 3mm up to 100mm or more, depending on blade size and machine power. Some models are designed for stack cutting, allowing multiple boards to be cut in one pass—greatly improving throughput.

Why It Matters in Today’s Woodworking Industry

With increasing customization, just-in-time production, and the need for scalability, traditional methods no longer suffice. CNC panel saws provide the automation, accuracy, and flexibility required for the modern manufacturing landscape.

From custom cabinetry to mass-produced wardrobes, CNC panel saws:

• Enable better inventory management through precision sizing.

• Improve customer satisfaction with consistent product quality.

• Lower operational costs and improve margins.

• Allow factories to scale operations without proportionally increasing labor.

Conclusion

The CNC panel saw is not just a tool—it's a transformational technology that enables woodworking businesses to grow, compete, and innovate. By automating the once laborious and error-prone process of cutting sheet materials, CNC panel saws deliver unmatched precision, consistency, and efficiency.

Whether you're running a small workshop transitioning to automation or managing a high-volume furniture factory, investing in a CNC panel saw will modernize your production line and position your business for long-term success.
