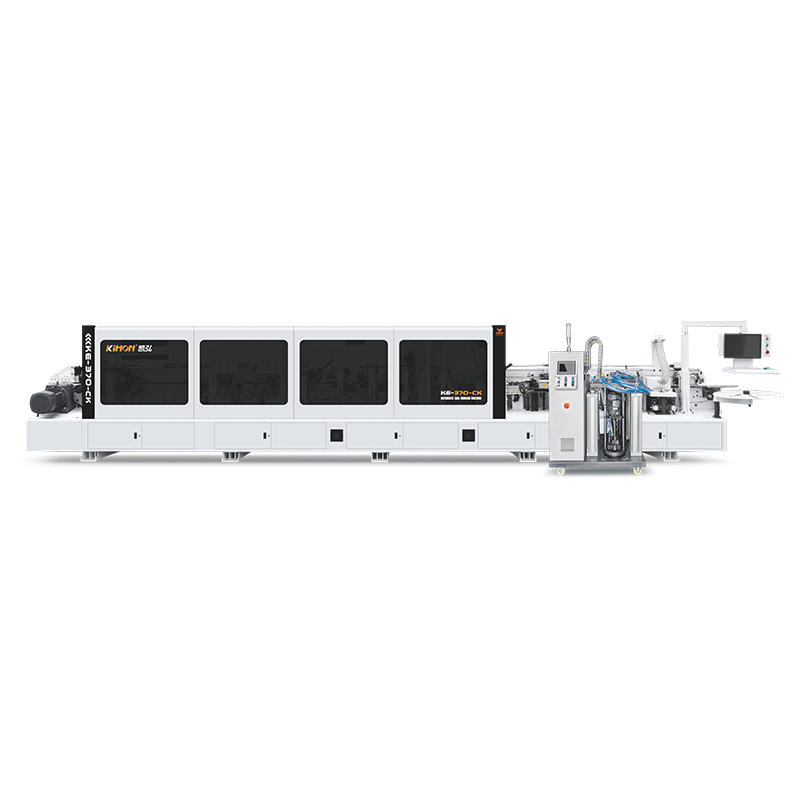

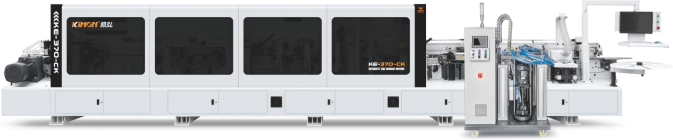

EDGE BANDING MACHINE KE-370-CK

Serial number

Name

Reference picture

Remark

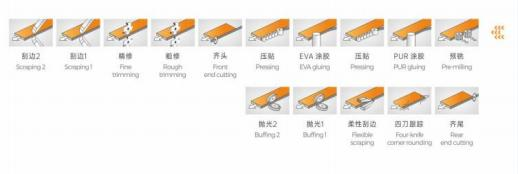

1

Central

control

screen

Main functions: start and stop equipment, function selection, parameter settings, warning prompts, and other functions, easy to operate with simple training.

2

Separating

agent spray

device

Spray the separating agent on the board that needs to be pre-milled to form an isolation layer on the upper and lower sides of the board to prevent dust from sticking to the board after pre-milling and making it difficult to clean.

3

Pre-milling

The edge of the panel is cut and trimmed, make the

edge of the panel is more smooth and flat, without burr. Make the edge band tape and panel fit more tightly,

after the edge of the glue line is smaller.

4

PUR no

cleaning glue

pot

The no-clean PUR two-color glue pot can reduce

problems such as cleaning the glue pot and wasting glue. The glue line is small, and PUR glue is highly sticky.

5

Pneumatic

gluing pot

The glue pot heats up quickly and has a good edge

sealing effect on PVC, high-gloss door panels and other panels. It can achieve edge sealing without glue lines, and the pneumatic glue pot design makes the operation easier.

6

Six wheels

pressing

Multi-point contact and tight paste, make the sealing tape and the panel more strongly fit.

7

Front end

cutting

This unit trims the edging strips at both the leading and trailing ends of the panel following the edge-banding process. Featuring a single-guide, 45-degree end-trimming design, it ensures superior precision and efficiency. Additionally, the inclusion of a dust extraction port and a material baffle allows for the effective removal of waste material.

8

Double

trimming

Through rough trimming and fine trimming, the excess edge banding on the upper and lower sides of the cutting board is made parallel to the height of the panel, so that the edge banding effect is more refined and feels better. The new vacuum design can remove chips and vacuum more accurately.

9

Double

scraping

For the upper and lower edges of the edge-sealing tape after trimming, scrape out arc edges with an α angle to make the edge-sealing effect more refined. The double scraped edges can correspond to coated and non-coated plates, or thick and thin strips.

10

Rear end

cutting

After edge banding, any excess banding material is trimmed away. The "flush-tail" design—positioned immediately after the scraping stage—effectively prevents corner chipping during scraping, minimizes the risk of banding breakage, and protects the panel edges from impact damage.

11

Four-motor

corner

rounding

The four corners of the edge-banded board are chamfered and rounded to make the four corners more refined and smooth after edge banding.

12

Standard

Side Hole

Positions

An open space of approximately 680 mm is reserved upstream of the polishing section, allowing for the

flexible addition of an edge-banding and side-boring function, tailored to the client's specific production requirements.

13

Flexible

scraping

Flexible edge scraping can scrape off the remaining glue and trim the edge strips of the workpiece after edge sealing to make the edge sealing effect more refined.

14

Cleaning

Clean the dirt on the top and bottom sides of the panel after the edge sealing, make the panel can reduce the subsequent cleaning process.

15

Buffing

The panel after sealing the edge is polished to make the top and bottom sides of the edge sealing belt more smooth and beautiful.

Noted：Our company continues to research and improve product specifications and design details. If the above specifications are subject to change, please refer to the actual product!
