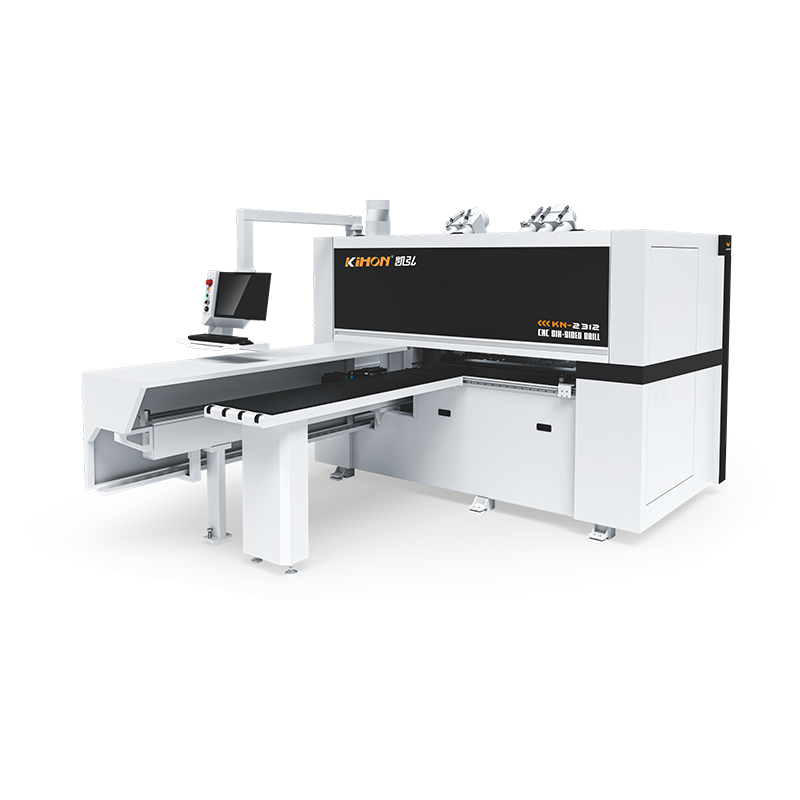

KN-2312 CNC SIX-SIDED DRILLER

Product Overview

Our woodworking CNC drilling machine is a professional intelligent equipment tailored for the modern wood processing industry, integrating advanced CNC control technology, high-precision mechanical transmission and efficient drilling system. It is specially designed for precise drilling, hole positioning, countersinking and tapping of various wood materials, solving the pain points of low positioning accuracy, uneven hole spacing, high labor intensity and low efficiency of traditional manual drilling or semi-automatic drilling. Suitable for solid wood, plywood, particleboard, MDF, decorative panels, composite wood and other materials, our CNC drilling machine is available in single-spindle, multi-spindle and gantry models, covering small-scale workshops, large furniture factories, custom processing enterprises and other different production scales. It is an essential core equipment to improve processing accuracy, reduce material waste and promote the automation upgrade of woodworking production.

Core Features

• High Precision Positioning: Adopts imported servo motor and high-precision linear guide rail, with positioning accuracy up to ±0.01mm and repeat positioning accuracy ±0.005mm, ensuring that each hole is accurately positioned, with uniform hole spacing and consistent depth, completely avoiding errors caused by manual operation. The CNC system supports precise parameter setting, realizing arbitrary adjustment of hole position, hole depth and hole spacing.

• Intelligent CNC Control: Equipped with professional woodworking CNC system (compatible with Mach3, DSP, Syntec), with a user-friendly touch screen operation interface, supporting CAD/CAM drawing import, automatic path planning and offline operation. It can store multiple sets of processing parameters and processing programs, which is convenient for batch processing and repeated use, greatly reducing manual intervention and improving production efficiency. The one-key start function makes operation simple and easy to learn, even for operators with little experience.

• Efficient Drilling Performance: Equipped with high-power spindle motor (1.5KW-11KW optional), with variable frequency speed regulation (0-24000rpm), which can be adjusted according to different materials and drilling requirements. The multi-spindle model (optional 4-24 spindles) can drill multiple holes at the same time, improving processing efficiency by 5-8 times compared with single-spindle manual drilling. The automatic tool change system (optional) can quickly switch between drill bits, countersinks and taps, realizing integrated processing of drilling, countersinking and tapping.

• Versatile Processing Capability: Supports multi-functional processing such as through-hole drilling, blind-hole drilling, countersinking, tapping, and step-hole drilling, meeting the drilling needs of various wood products (furniture, cabinets, wooden doors, wooden frames, etc.). It can process holes of different sizes (Φ1mm-Φ50mm) and depths (0-100mm), and the working table size can be customized (1300×2500mm, 1500×3000mm, etc.) to adapt to large-size panel drilling.

• Stable & Durable: The machine body is made of thickened cast iron, processed by CNC gantry milling and precision welding, with strong rigidity, small vibration during operation and no deformation. The imported guide rail, ball screw and spindle are wear-resistant and corrosion-resistant, ensuring long-term stable operation. The dust-proof design of the guide rail and spindle effectively prevents wood dust from entering, extending the service life of the equipment.

• Safe & User-Friendly: Equipped with multiple safety protection devices, including emergency stop button, protective cover, spindle overload protection, and voltage stabilization protection, which can quickly shut down the machine in case of abnormalities, effectively preventing safety accidents. The ergonomic design of the operation interface and the detachable working table facilitate daily operation and maintenance. The built-in dust extraction port can be connected to a dust collector, reducing wood dust during processing and protecting the health of operators.

Technical parameter

Main Functions and Features of the Equipment (Photos for Reference Only)

Serial number	Name	Reference picture	Remark

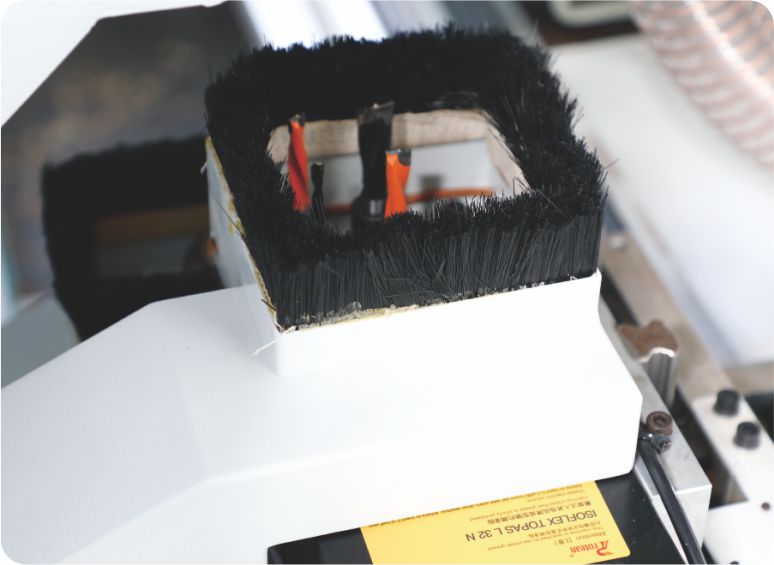

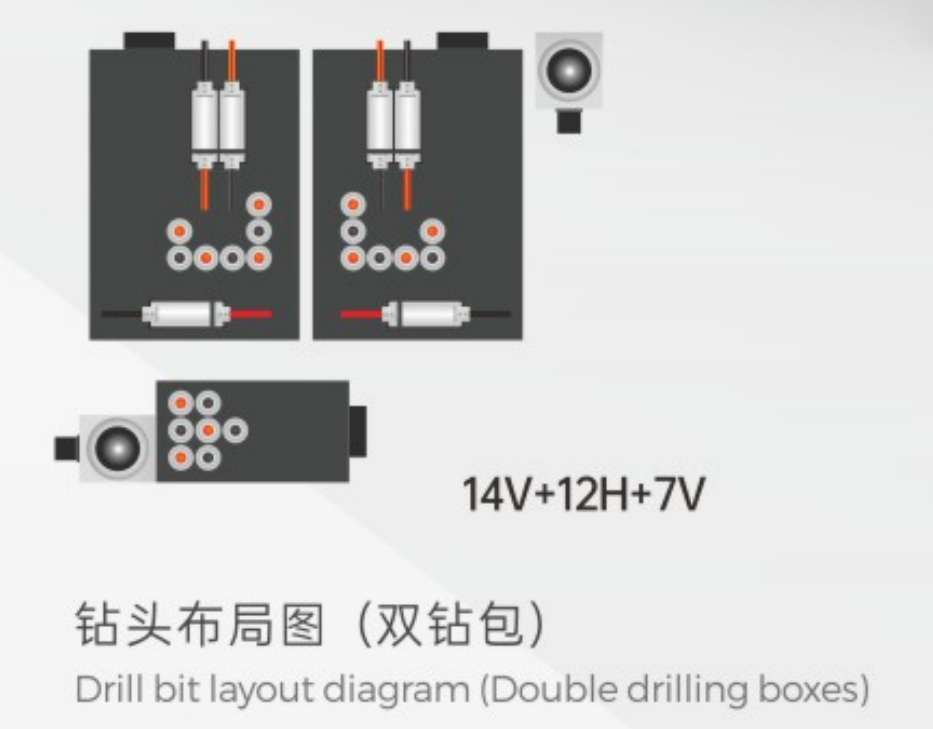

01	Drilling box		14 upper vertical drill bits 12 horizontal drill bits 7 lower vertical drill bits
02	Intelligent gripper		Pneumatic gripper, stable material clamping, more accurate hole position, intelligent avoidance of drill box stroke, reducing failure rate.
03	Feeding table		Pneumatic floating bead table reduces damage to the surface of the work piece and feeds materials easily
04	Scratch-resist ant side aligner		With rubber wheel side leaning device, the side positioning of the panel is more accurate, and it is not easy to damage the work piece after edge banding
05	Working table		The processing table is equipped with air floating points to reduce the friction between the plate and the table and effectively protect the plate. The post-processing table is equipped with rubber wheels to assist in feeding.
06	Top drill box Bottom drill box		The top and bottom drill boxes are made of Taiwan Protean precision earthquake-resistant drill packages and high-quality drill groups, which can effectively ensure the stability of equipment operation and the processing accuracy of the equipment.
07	Helical rack drive		The helical gear transmission allows the drill package to be more closely connected to the rack, which can increase the processing speed.
Noted：Our company continues to research and improve product specifications and design details. If the above specifications are subject to change, please refer to the actual product!

Application Scenarios

Our woodworking CNC drilling machine has strong adaptability, covering a variety of wood processing scenarios, from small-scale personalized customization to large-scale batch production, which can perfectly meet the drilling needs of different users and industries.

1. Large-Scale Furniture Manufacturing Factories

In large furniture factories focusing on mass production of panel furniture and solid wood furniture, multi-spindle CNC drilling machines are the core equipment of the production line. They are mainly used for batch drilling of cabinet panels, wardrobe panels, table tops, bed frames and other furniture parts, such as hinge holes, handle holes, connecting holes and positioning holes. The multi-spindle design allows simultaneous drilling of multiple holes, greatly improving production efficiency. The machine can be integrated with CNC cutting machines, edge banders and other equipment to form a fully automatic production line, realizing one-stop processing from cutting, drilling to edge banding. The precise positioning ensures that the hole position of each part is consistent, which is convenient for subsequent assembly, reducing labor costs and material waste.

2. Custom Cabinetry & Wooden Door Factories

For custom cabinetry and wooden door factories, the CNC drilling machine’s high precision and versatile processing capability are particularly important. It can accurately drill according to the customized size and design drawings, realizing personalized drilling of kitchen cabinets, bathroom cabinets, wardrobes, wooden doors and other products. For example, it can drill hinge holes of different specifications on cabinet doors, handle holes of different positions on wardrobe panels, and connecting holes on wooden door frames. The 4-axis/5-axis models can also drill inclined holes and special-shaped holes, meeting the special processing needs of customized products. The ability to store multiple sets of processing programs makes it easy to switch between different customized orders, improving production flexibility.

3. Small & Medium-Sized Woodworking Workshops

For small and medium-sized woodworking workshops with limited scale and diverse processing needs, the single-spindle or 4-spindle CNC drilling machine is the most cost-effective choice. It has a compact structure, small floor space, simple operation and low maintenance cost, which can handle small-batch drilling of various wood products, such as small furniture, wooden shelves, decorative panels and other products. The machine supports CAD/CAM drawing import, and operators can quickly set processing parameters according to drawings, realizing precise drilling without professional skills. It is suitable for workshops that focus on personalized customization and small-batch production, helping to improve product quality and market competitiveness.

4. Wooden Craft & Decoration Processing Studios

In wooden craft and decoration processing studios, the CNC drilling machine is an ideal tool for creating delicate crafts. It can realize precise drilling of small holes, step holes and countersunk holes on wooden crafts, such as wooden sculptures, decorative pendants, picture frames, wooden toys and other products. The high precision ensures that the holes are neat and smooth, and the details of the crafts are perfect. It can also drill holes on decorative panels, wooden frames and other decoration materials, used for interior decoration, wall decoration, hotel decoration and other fields. The small-sized CNC drilling machine is easy to move and operate, suitable for small-space studios, helping craftsmen realize their creative ideas.

5. Woodworking Panel & Component Processing Factories

In woodworking panel and component processing factories, the large-format CNC drilling machine is used for large-scale drilling of particleboard, MDF, plywood and other engineered wood panels, as well as wood components such as wooden keels and connecting pieces. The machine has a large working table, which can process large-size panels in one step, avoiding secondary processing. The multi-spindle model can drill multiple rows of holes at the same time, improving processing efficiency. The precise drilling ensures that the size and position of the holes are accurate, which is convenient for subsequent assembly and connection of panels and components, improving the stability and durability of the products. It can also process customized holes according to customer needs, expanding the application range of the products.

FAQ

Q1: What types of wood materials can this electronic saw cut?

A: Our woodworking electronic saw is suitable for cutting various wooden materials, including solid wood, plywood, particleboard, MDF, decorative panels, wood keels, and wooden blocks. It can also cut non-ferrous metals and plastics with the appropriate saw blade (for multifunctional models), meeting diverse processing needs.

Q2: How to ensure the cutting precision of the electronic saw?

A: The electronic saw is equipped with advanced electronic positioning and laser guiding technology, which can accurately position the cutting line and avoid deviation. In addition, the stable machine structure and low vibration design reduce cutting errors. It is recommended to check the saw blade tightness and laser calibration regularly, and use high-quality carbide-tipped saw blades to ensure long-term precise cutting.

Q3: Is the electronic saw easy to operate for beginners?

A: Yes. The electronic saw adopts a user-friendly design, with a simple operation interface, tool-free depth and bevel adjustment, and clear scale marks. The ergonomic handle reduces hand fatigue, and the safety protection devices (blade guard, electric brake) ensure safe operation. For beginners, it only takes a short time to master the basic operation skills; we also provide a detailed user manual and online technical support.

Q4: How to maintain the electronic saw to extend its service life?

A: Regular maintenance is essential to extend the service life of the electronic saw: 1. Clean the saw blade and dust extraction port after each use to avoid dust accumulation; 2. Check the saw blade for wear and replace it in time to ensure cutting efficiency and safety; 3. Lubricate the moving parts regularly to reduce friction; 4. Store the saw in a dry, ventilated place to avoid moisture and corrosion; 5. Avoid overloading the machine and follow the operating specifications strictly. We provide a 1-year warranty and professional maintenance guidance.

Q5: Can the electronic saw be customized according to our needs?

A: Yes. We support customization according to customer needs, including operating voltage (220V/380V/460V), saw blade diameter (165mm-600mm), cutting length (up to 6000mm), feeding speed, and additional functions (such as automatic feeding, touch screen control). Whether you need a portable model for on-site construction or an industrial model for large-scale production, we can provide a customized solution to meet your specific processing needs.

Q6: Is the electronic saw safe to use in wet environments?

A: No. The electronic saw is an electrical equipment, and using it in wet environments (such as rain, humid workshops with water accumulation) may cause electric shock, short circuit, and other safety hazards. It is recommended to use the saw in a dry, well-ventilated environment. If you need to use it outdoors, please ensure that the equipment is protected from rain and moisture, and wear appropriate protective equipment (such as non-slip gloves, safety goggles).

Q7: What is the difference between this electronic saw and a traditional manual saw?

A: Compared with traditional manual saws, our electronic saw has obvious advantages: 1. Higher efficiency: The high-power motor drives the saw blade to cut quickly, which is 5-10 times more efficient than manual saws; 2. Higher precision: Electronic positioning and laser guiding ensure consistent cutting size, avoiding errors caused by manual operation; 3. Easier operation: Reduces labor intensity, no need for manual force, suitable for long-term operation; 4. More versatile: Supports multi-angle, multi-material cutting, meeting diverse processing needs; 5. Safer: Equipped with multiple safety protection devices, reducing the risk of accidents.

Q8: How loud is the electronic saw, and do I need hearing protection?

A: The noise level of the electronic saw is about 75-85 decibels during operation, which is within the acceptable range for industrial equipment. However, if you use the saw for a long time (more than 2 hours a day), it is recommended to wear hearing protection equipment (such as earplugs) to protect your hearing. In addition, the dust extraction function can reduce dust and noise to a certain extent, improving the working environment.

After-Sales Service

We are committed to providing high-quality products and professional after-sales service to ensure your worry-free use:

1. 1-year product warranty (3 years for registered industrial models), free repair or replacement for non-human damage;

2. 24/7 online technical support, answering your operation and maintenance questions at any time;

3. Supply of original spare parts (saw blades, motors, etc.) for a long time, ensuring convenient maintenance;

4. On-site installation and training services for large-scale industrial models, helping you master the use skills quickly.

If you have any questions about our woodworking electronic saw, please feel free to contact us, and we will provide you with a professional solution as soon as possible.
