Introduction

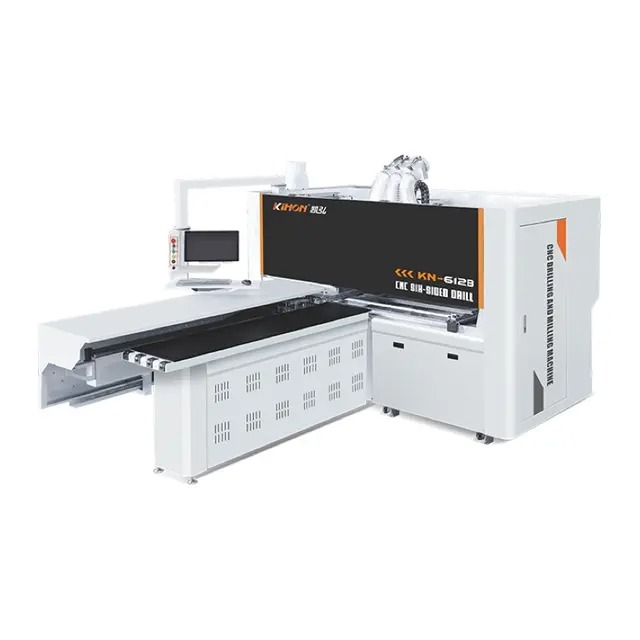

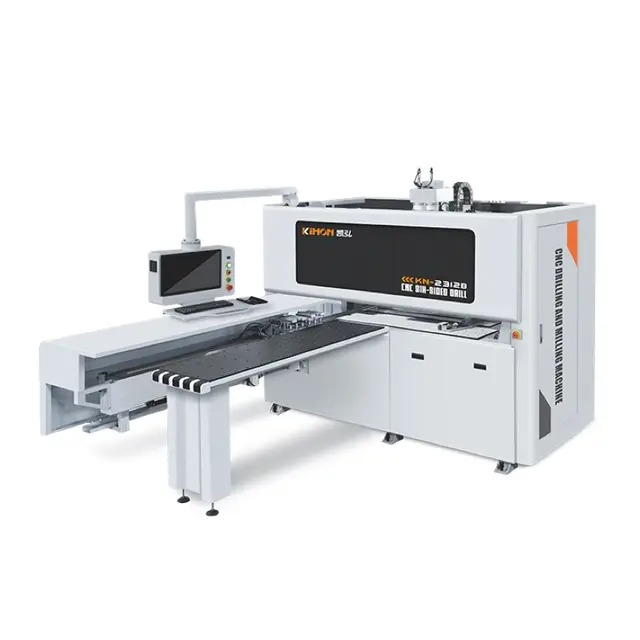

A six-sided CNC drilling machine is an advanced piece of machinery that allows for precise and efficient drilling operations on a wide variety of materials. With its ability to work on all six sides of a workpiece, this technology offers considerable flexibility in manufacturing processes. It can be used in numerous industries, including aerospace, automotive, electronics, and construction, to create intricate holes, channels, and patterns. But what materials can be drilled using a six-sided CNC drilling machine, and how does it handle different materials? This article will delve into these aspects, exploring which materials are compatible with six-sided CNC drilling machines and the advantages of using them in various industrial applications.
The Versatility of Six-Sided CNC Drilling Machines
Precision and Flexibility
One of the standout features of a six-sided CNC drilling machine is its versatility. Unlike conventional machines that are limited to drilling on only one side of a workpiece, this technology allows drilling on multiple sides, offering higher accuracy and efficiency for complex parts. The machine can be programmed to rotate the workpiece and drill multiple holes or create features on different sides in one setup, minimizing handling time and improving consistency.
This flexibility makes six-sided CNC drilling machines ideal for a wide range of materials, including metals, plastics, composites, and wood. The ability to adjust the drilling parameters for various materials ensures that each material can be processed with optimal speed and accuracy.
Key Factors Affecting Material Compatibility
Before diving into specific materials, it’s important to consider the key factors that affect whether a material can be drilled using a six-sided CNC drilling machine. These factors include:
Material Hardness: Harder materials require more specialized tools and adjustments to the machine's speed and feed rates.
Thermal Conductivity: Materials with higher thermal conductivity can dissipate heat more effectively, which can influence the type of drill bits used.
Workpiece Size: The size and shape of the workpiece also determine whether it can be effectively drilled using a six-sided CNC machine.
Drilling Depth and Hole Configuration: Complex hole configurations and deep holes may require advanced drilling techniques that are supported by six-sided machines.
With these factors in mind, let’s explore the materials that can be efficiently drilled using a six-sided CNC drilling machine.
Drilling Metals with a Six-Sided CNC Drilling Machine
1. Aluminum
Aluminum is one of the most common metals drilled using CNC drilling machines, including six-sided CNC machines. Due to its relatively soft nature compared to other metals, aluminum can be drilled quickly and efficiently. Six-sided CNC drilling machines excel at drilling aluminum due to their precision and ability to handle multi-sided drilling in a single operation.
Aluminum alloys, which are often used in aerospace, automotive, and construction applications, benefit from the machine's ability to create precise holes, reducing the need for secondary operations. Additionally, the smooth finish provided by six-sided CNC machines ensures the drilled holes meet tight tolerances.
2. Steel (Mild and Stainless)
Steel, including both mild steel and stainless steel, can also be drilled using a six-sided CNC drilling machine. However, drilling steel requires adjustments to drilling speed, feed rate, and cutting tools. Stainless steel, in particular, is more challenging due to its toughness and tendency to work-harden, but with the right tools and machine settings, it can be processed effectively.
In industrial settings, steel parts often require holes for fasteners, bearings, or connectors. Six-sided CNC drilling machines offer the flexibility to drill multiple holes from different angles, making them ideal for steel components that require high precision and complex hole patterns.
3. Titanium
Titanium is a high-performance material commonly used in aerospace, medical, and military applications due to its strength-to-weight ratio and corrosion resistance. Drilling titanium on a six-sided CNC machine presents challenges due to its hardness and tendency to generate heat during drilling. However, with appropriate tools and cooling methods, titanium can be drilled efficiently, making the six-sided CNC drilling machine a valuable asset for titanium-based components.
Drilling Non-Metals: Plastics and Composites
1. Engineering Plastics (e.g., Nylon, Polycarbonate)
Engineering plastics, such as nylon, polycarbonate, and acetal, are commonly drilled on six-sided CNC machines. These materials are often used in the automotive and electronics industries for creating housings, enclosures, and other complex components. The main advantage of using CNC technology for drilling plastics is the precision and repeatability that ensures tight tolerances are met.
However, drilling plastics requires special consideration of factors like heat generation and material melting. Cooling systems are often used to ensure that the drilling process does not cause the material to deform or melt. The six-sided CNC machine’s ability to handle multiple sides in one setup is particularly useful for creating intricate geometries in plastic parts.
2. Carbon Fiber and Other Composite Materials
Carbon fiber composites are increasingly used in aerospace, automotive, and other high-performance industries due to their lightweight and high-strength properties. Drilling carbon fiber with a six-sided CNC drilling machine is highly beneficial for producing accurate holes without damaging the material.
Carbon fiber requires specialized drills to avoid splintering or delaminating the layers of the material. The six-sided CNC drilling machine’s ability to drill from different angles allows manufacturers to create holes with complex configurations while minimizing the risk of damage.
Wood and Wood-Based Materials
1. Hardwood and Softwood
While wood is typically not as challenging to drill as metals or composites, using a six-sided CNC drilling machine can improve the quality and consistency of holes. Both hardwood and softwood can be drilled with high precision, especially for applications in furniture making, cabinetry, and interior design. Six-sided CNC drilling machines can create holes on multiple faces of wooden components, making them ideal for intricate patterns or designs that require drilling on different sides.
Additionally, the ability to drill on multiple sides reduces handling time and increases efficiency in production.
2. MDF and Plywood
MDF (Medium Density Fiberboard) and plywood, which are commonly used in construction and interior design, can also be drilled on a six-sided CNC machine. These materials benefit from the machine’s precision and ability to produce uniform holes across multiple sides. The machine’s versatility makes it suitable for high-volume production where consistent results are required.
Table 1: Material Compatibility with Six-Sided CNC Drilling Machines
| Material | Drilling Capability | Considerations |
|---|---|---|
| Aluminum | High | Requires appropriate speed and feed rates |
| Mild Steel | Moderate to High | Adjustments needed for harder steels |
| Stainless Steel | Moderate | Prone to work hardening, requires proper tools |
| Titanium | Challenging | High hardness, needs specialized tooling and cooling |
| Engineering Plastics | High | Cooling systems recommended to avoid melting |
| Carbon Fiber Composites | High | Specialized drills to prevent delamination |
| Hardwood and Softwood | High | Relatively easy, but precision is key |
| MDF and Plywood | High | Suitable for intricate designs and high-volume work |
Conclusion
The six-sided CNC drilling machine is an invaluable tool in modern manufacturing, offering versatility across a wide range of materials. From metals like aluminum, steel, and titanium to non-metals such as plastics, composites, and wood, this machine can drill complex holes with precision on multiple sides of the workpiece. Its ability to handle various materials makes it ideal for industries that require high-quality, repeatable results in less time.
By understanding the compatibility of different materials and adjusting the machine's settings accordingly, manufacturers can maximize the efficiency and effectiveness of their drilling operations, ultimately achieving higher product quality and lower production costs.
FAQ
1.What types of drills are used for drilling hard materials like titanium?
For drilling hard materials like titanium, carbide-tipped or high-speed steel (HSS) drills are commonly used. Additionally, special coatings like TiN (Titanium Nitride) may be applied to improve wear resistance and reduce friction during the drilling process.
2.Can a six-sided CNC drilling machine be used for drilling ceramics or glass?
While it is possible to drill ceramics or glass with CNC machines, it requires specialized drills and equipment. A six-sided CNC drilling machine can be configured to handle these materials, but it would require additional considerations like slower feed rates and precise cooling techniques to prevent cracking.
3.How does drilling plastics differ from drilling metals?
Drilling plastics generally generates more heat, and if the material melts, it can lead to poor hole quality. Cooling systems, such as air or mist cooling, are often used when drilling plastics. In contrast, metals require precise adjustments in feed rate and cutting speed to account for the hardness and tendency to work-harden.
